Wireline  Lightweight  Lubricator 3Inch 10,000PSI   Wireline Pressure Control Equipment

overview

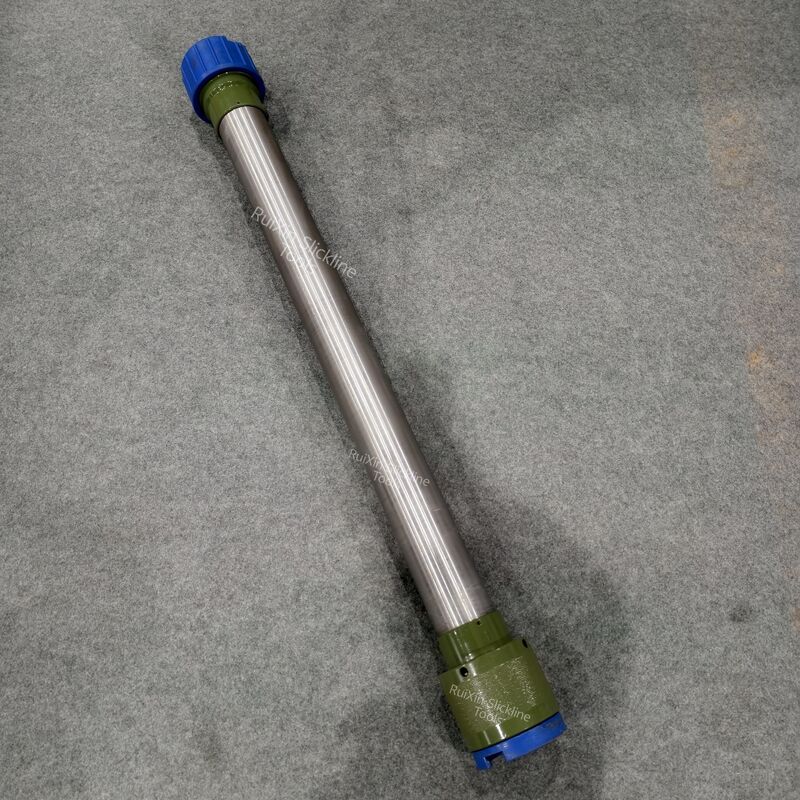

The lightweight  lubricator  is  pipe with standing high pressure, used to accommodate the entry and exit of downhole tools into the well under pressure. The lightweight lubricator   can accommodate basic tool strings such as rope caps, weighting rods, and impact arrestors. The lower part of the lightweight  lubricator tube  pipe is connected to the blowout valve, and the upper part is connected to the blowout box or the grease injection sealing system. The length of the lightweight  lubricator tube  pipe is generally 3 feet, 4 feet, and 8 feet; during operation, a multi-section  lubricator tube  pipe combination is selected based on the length of the downhole tools.

Technical parameters

Specification:     FG7.6-70-4ft/8ft
Diameter:          3 inch
Working pressure:  70 Mpa
Strength test pressure:  105 Mpa
Connection type:    4-3/4-4 ACME DL.B type
Length:   4ft/8ft
Weight:   30 kg/46KG

Structural features:

The lightweight lubricator is composed of upper and lower joints, the cylinder body, union nuts and other sealing components.
Among them, the cylinder body is the main pressure-bearing part, and it can accommodate the tool string inside. It is the main body of the lightweight lubricator tube pipe. The union connection point is equipped with a sealing ring to ensure the sealing performance of the connection between the lubricator

.Any size can be customized according to customer requirements.

Pressure test

Lightweight  lubricator withstand voltage test on a regular basis, test pressure is 1.5 times of working pressure.

1. Mount pressure joint, connected pipe pressure test;

2. Start the pressure test pump to conduct a pressure test: pressurize to the test pressure, maintain the pressure for 15 minutes without leakage, and fill in the test record card.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.
